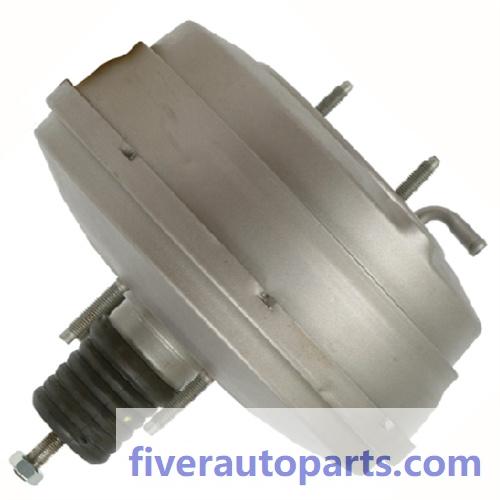

Booster Assy-Brake 26402FJ010 for Subaru Crosstrek 2016-2017

Part Number: 26402FJ010, 26402VA010, 26402FJ110

Parameter:

Diaphragm Diameter (IN)： 9.669
Master Cylinder Stud Thread Size： M8 x 1.25

Applications:

Subaru Crosstrek 2016-2017
Subaru Forester 2014-2018
Subaru Impreza 2012-2016
Subaru Impreza R 2012
Subaru WRX 2015
Subaru WRX STI  2016-2021
Subaru XV Crosstrek 2013-2015

What is a vacuum brake booster?

A vacuum brake booster is a dynamic braking system that uses engine vacuum to assist in applying force to the brake pedal. It is designed to make it easier for the driver to depress the brake pedal and achieve effective braking. Vacuum brake boosters use the vacuum created in the intake manifold of the engine to work. When the driver depresses the brake pedal, the valve opens, allowing vacuum from the engine to enter the brake booster. The resulting vacuum pressure helps increase the force applied by the driver, making the braking process easier and more efficient. Overall, the vacuum brake booster is an important part of the modern braking system, which greatly improves the braking performance and enhances the safety and control of the vehicle.

See the following the whole brake system work circuit, it will give a general idea about booster.

brakesystem1.jpg" alt="Brake System">

Advantages on FIVER’s Vacuum Brake Booster：

◆ We have more than 8000SKUs on Vacuum Brake Booster, they covered 85% of car models all over the world, and keep developing for the new coming models.

◆ Strong technical support, and customized design, drawing/sample based developing is available.

◆ High quality with long time warranty.

◆ We research more deeper: Some original design weaknesses are corrected to make a longer lasting part.
